XCMG Global, XGS28K
Have one to sell?
ConditionNew
New

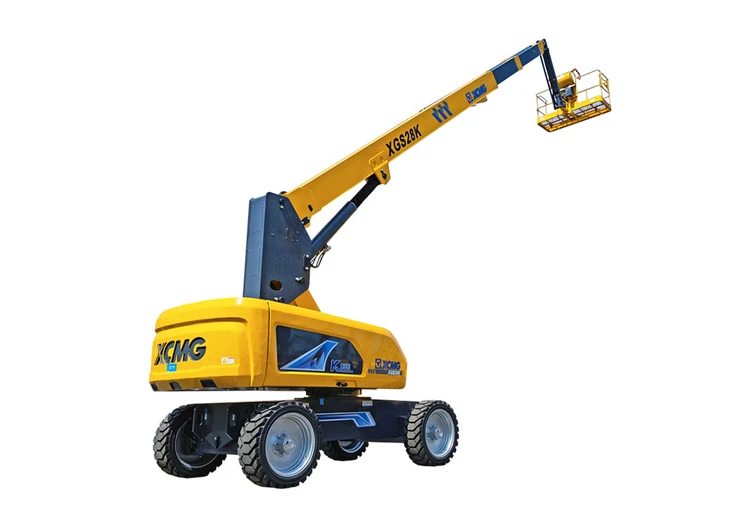

XGS28K mobile elevating platform is a kind of straight-arm mobile elevating platform with compact layout, precise design, powerful drive and easy operation. It is easy to operate, safe, reliable, accurate and efficient, and can widely meet the needs of users in various industries such as building construction, steel structure, petrochemical, venues and rental.
Working Height: 28200 mm
Lift capacity: 300kg(unlimited)/460kg(limited) kg
Weight: 16500 kg
Overall dimension-Stowed: 12300x2490x3050 mm
Overall dimension-Transportation: 12300x2490x3050 mm
Dimension of working platform: 2440x910x1150 mm
Wheelbase: 3000 mm
Fly jib length: 1600 mm
Ground clearance: 310 mm
Max.Platform height: 26.2 m
Max.Working range: 20.6 m
Max.Occupants: 3
Max.Working slope: X-3°/ Y-3°
Telescopic boom luffing range: -5°~ +73°
Flying jib luffing range: -65°~ +70°
Turntable rotation: 360°
Platform rotation: 160°
Drive speed: 6.1km/h stowed
Drive speed: 1km/h Up or extended
Min.Turning radius: 3600mm/6700mm inside/outside
Turntable tailswing: 1600mm stowed
Max.Gradeability: 40% (22°)
