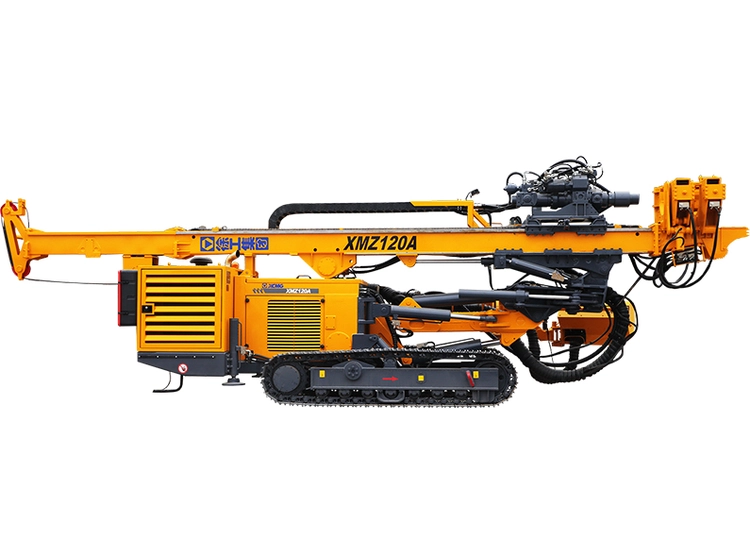

XCMG Global, XMZ120A
Have one to sell?
ConditionNew
New
XMZ120A mltifunctional drilling rig is applied to the construction of anchor bolt support drilling, slope support drilling, tunnel grouting drilling, and tunnel rescue drilling. Jet grouting can be configured, and the function can be achieved by replacing the rotary drive and drilling tool, and adding boom, elevator, pump and air compressor.
Rated power: 119 kW
Max. feed/pull-out force: 70 kN
Max. torque（multiple options）: 12900/6400 N·m
Max. rotate speed （multiple options）: 34/68 r/min
Engine model: QSB4.5
Emission standard: EU III
Feed stroke: 4000 mm
Clamping range （multiple options）: Ф60-Ф415 mm
Weight: 14.5 t
Transport dimensions: 9808×2280×2877 mm
