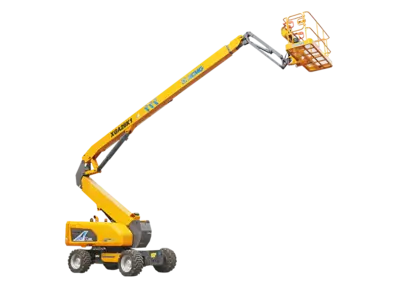

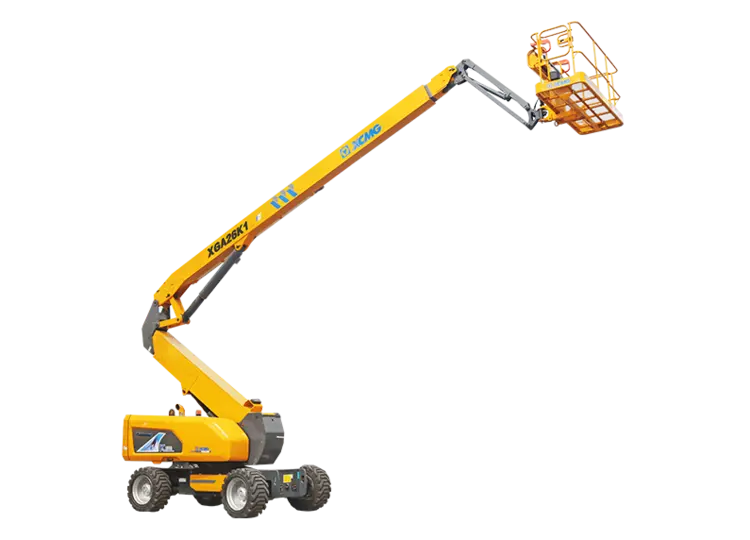

XCMG Global, XGA26K1
Have one to sell?
ConditionNew
New
A 26 meter curved arm mobile lifting platform with excellent handling and fuel economy. Four wheel drive, leading the industry in climbing speed; Excellent scalability and larger work scope; Efficient and stable work experience; Power self matching energy-saving system, maximizing fuel economy.
Working Height: 26600 mm
Lift capacity: 150(unlimited)/256(limited) kg
Weight: 16500 kg
Overall dimension-Stowed: 11760x2490x2950 mm
Overall dimension-Transportation: 9400x2490x3000 mm
Dimension of working platform: 2440x910x1150 mm
Wheelbase: 3000 mm
Fly jib length: 1850 mm
Ground clearance: 380 mm
Max.Platform height: 24.6 m
Max.Working range: 19.5 m
Max.up and over clearance: 8.7 m
Max.Occupants: 1/2
Max.Working slope: X-3°/ Y-3° °
1st Boom luffing range: -1°~ +70° °
2nd Boom luffing range: -35°~ +68° °
Flying jib luffing range: -65°~ +70° °
Turntable rotation: 360° °
Platform rotation: 160° °
Drive speed: 5 stowed
Drive speed: 0.6 Up or extended
Min.Turning radius: 2355/4625 inside/outside
Turntable tailswing: 2255 stowed
Max.Gradeability: 45% %
