XCMG Global, XGA20K
Have one to sell?
ConditionNew
New

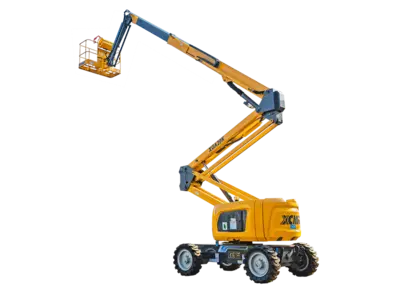

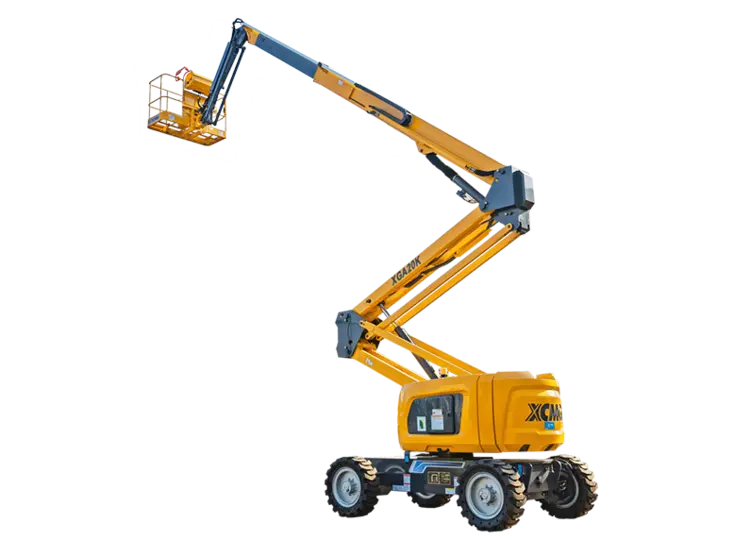

20 meter level“ Σ” The Y-shaped linkage folding hybrid arm frame mobile lifting work platform is a compact layout, efficient obstacle crossing, precise design, strong driving, and easy operation curved arm mobile lifting work platform. Four wheel drive, with a climbing ability of 45%, standard axle balance, and strong ground adaptability.
Working Height: 20630 mm
Lift capacity: 256(unlimited)/350(limited) kg
Weight: 9900 kg
Overall dimension-Stowed: 8520x2300x2400 mm
Overall dimension-Transportation: 6300x2300x3100 mm
Dimension of working platform: 1830x760x1150 mm
Wheelbase: 2500 mm
Fly jib length: 1850 mm
Ground clearance: 330 mm
Max.Platform height: 18.63 m
Max.Working range: 12.08 m
Max.up and over clearance: 7.72 m
Max.Occupants: 2/3
Max.Working slope: X-3°/ Y-3° °
1st Boom luffing range: 0~72° °
2nd Boom luffing range: 0~73° °
Flying jib luffing range: -65~70° °
Turntable rotation: 360° °
Platform rotation: 180° °
Drive speed: 5.5 stowed
Drive speed: 0.6 Up or extended
Min.Turning radius: 2300/5000 inside/outside
Turntable tailswing: 540 stowed
Max.Gradeability: 45% %
