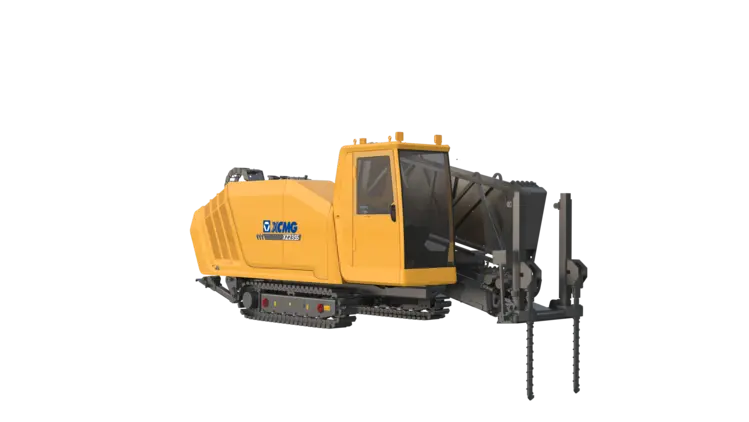

XCMG Global, XZ235S

Engine: / /
Rated power: / kW
Power head Max. thrust-pull force: / kN
Power head Max. thrust-pull speed: / m/min
Power head Torque: / N·m
Power head Max. rotation speed: / r/min
Mud pump Max. flow: / L/min
Mud pump Max. pressure: / MPa
Crane Lifting weight: / t
Crane Lifting moment: / t•m
Recommended  drill pipe: / mm×m
Max. entry angle: / °
Max. back reaming diamete: / mm
Weight: / t
Outline dimensions: / mm
Engine Power: 110 kW
Engine Model: 6BT5.9-C150 一
Max.Thrust-pull Force: 235 kN
Max.Thrust-pull Speed: 55 m/min
Max.Torque: 6500 N ·m
Max.Rotation Speed: 230 r/min
Max.Mud Flow: 250 L/min
Max.Mud Pressure: 8 MPa
Drill Pipe: φ60×3 mm×m
Max.EntryAngle: '12-20 一
Max.Reaming Diameter: 600 mm
Weight: 9500 kg
Dimensions（L×W×H）: 6800×2200×2300 mm
