XCMG Global, RP505
Have one to sell?
ConditionNew
New

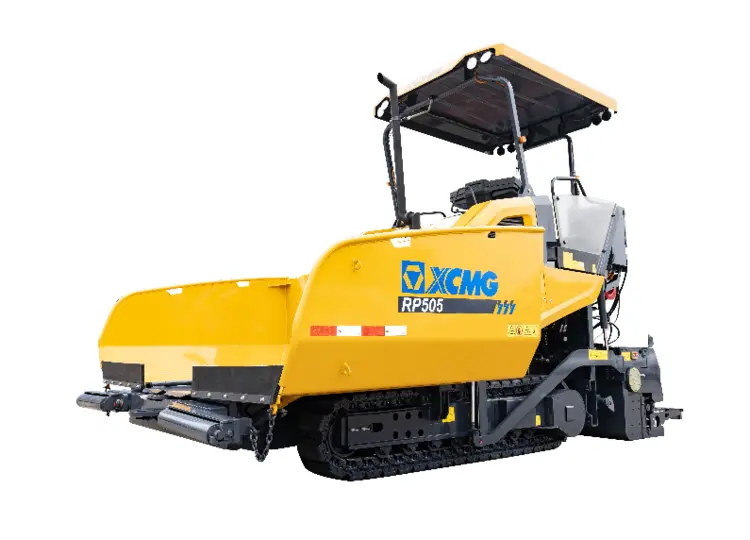

RP505 is a tracked paver with compact dimensions for high traffic ability, with reinforced E340T hydraulic extending screed with electric heating function and single tamper unit, a specially designed 250 bolt-on extension, its maximum working width reaches up to 5.0m. The machine features high mobility, excellent operation capacity and high construction efficiency, which is the preferred product for pavement, bicycle path, rural road maintenance and high-grade road paving operation.
Basic paving width: 1.8～3.4 m
Max. paving width: 5 m
Max. paving thickness: 280 mm
Working speed: 30 m/min
Travel speed: 4.5 km/h
Theoretical productivity: 400 t/h
Hopper capacity: 12 t
Diesel engine power: 104 kW
Overall dimension: 5864×2000×3107 mm
Total weight: 12.5 t
Engine Manufacturer: Cummins
Engine Model: QSF3.8
Emission: EC Stage Ⅲ
