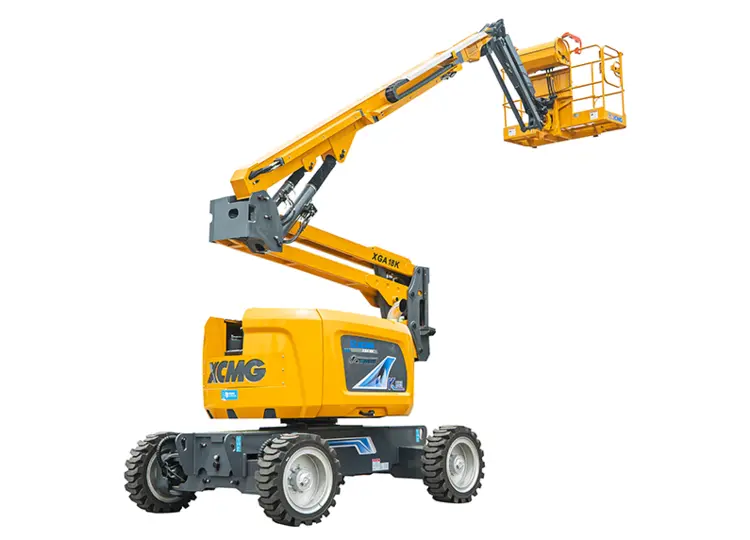

18m (59 ft 1 in) level“ Σ” The Y-shaped linkage folding hybrid arm frame aerial work platform is a compact layout, efficient obstacle crossing, precise design, strong driving, and easy operation curved arm aerial work platform. Equipped with multi-directional precise positioning functions for upward, downward, and crossing, as well as excellent stretching capabilities.
Working Height: 18010 mm
Lift capacity: 256(unlimited)/350(limited) kg
Weight: 8700 kg
Overall dimension-Stowed: 7640x2320x2380 mm
Overall dimension-Transportation: 5700x2320x2550 mm
Dimension of working platform: 1830x760x1150 mm
Wheelbase: 2360 mm
Fly jib length: 1420 mm
Ground clearance: 300 mm
Max.Platform height: 16.01 m
Max.Working range: 10.26 m
Max.up and over clearance: 7.7 m
Max.Occupants: 2/3
Max.Working slope: X-5°/Y-5° °
1st Boom luffing range: 0°～65° °
2nd Boom luffing range: -11°～75° °
Flying jib luffing range: -65°～70° °
Turntable rotation: 360° °
Platform rotation: 160° °
Drive speed: 5.5 stowed
Drive speed: 0.6 Up or extended
Min.Turning radius: 3200/4700 inside/outside
Turntable tailswing: 0 stowed
Max.Gradeability: 0.45 %
