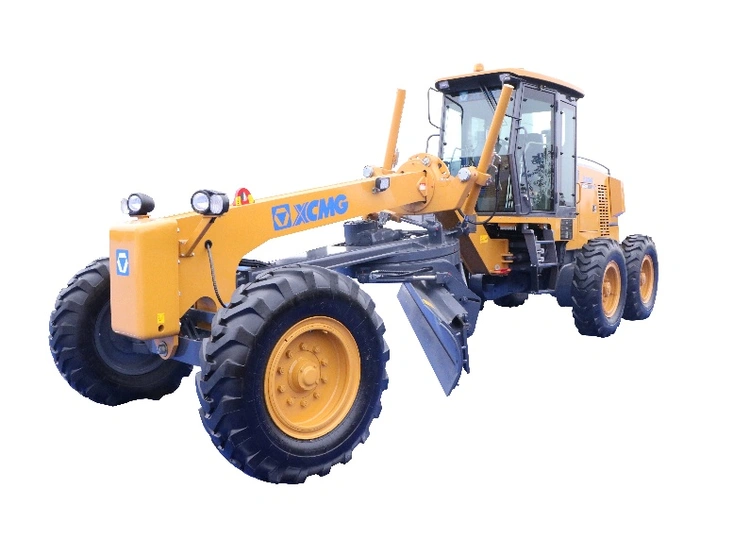

GR135 motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing scarification, snow removal for large areas such as highway, airports, farmlands etc. The machine features compact structure and high reliability, is the indispensable construction machinery for national defense projects, urban and rural roads and other building construction and water conserancy construction, farmland improvement, etc.
Engine model: 6BTA5.9-C150-Ⅱ
Rated power/speed: 112/2200 kW/rpm
Machine dimension/standard: 8015 x 2380 x 3050 mm
Machine weight/standard: 11200 kg
Drive speed, forward: 5/8/13/20/30/42 km/h
Drive speed, reverse: 5/13/30 km/h
Traction force f=0.75: ≥59 kN
Maximum gradeability: ≥25 %
Minimum turning radius: 6.6 m
Blade Length x Height: 3660 x 610 mm
