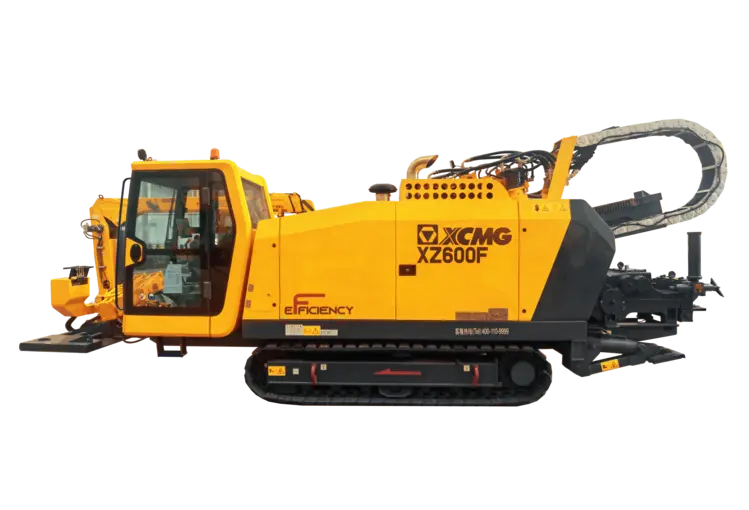

XCMG Global, XZ600F
Have one to sell?
ConditionNew
New
The medium-tonnage drilling rig can be used in municipal engineering, and can also be used to construct some oil and gas pipelines and in hard rock construction conditions.The medium-tonnage drilling rig is equipped with cab and auxiliary crane as standard
Engine: Cummins /
Rated power: 194 kW
Power head Max. thrust-pull force: 600 kN
Power head Max. thrust-pull speed: 55 m/min
Power head Torque: 31000 N·m
Power head Max. rotation speed: 140 r/min
Mud pump Max. flow: 600/800 L/min
Mud pump Max. pressure: 10 MPa
Crane Lifting weight: 2 t
Crane Lifting moment: 4 t•m
Recommended drill pipe: Φ89×4.5 mm×m
Max. entry angle: 20 °
Max. back reaming diamete: 1000 mm
Weight: 16 t
Outline dimensions: 9000×2450×2610 mm
