XCMG Global, XZ430E
Have one to sell?
ConditionNew
New

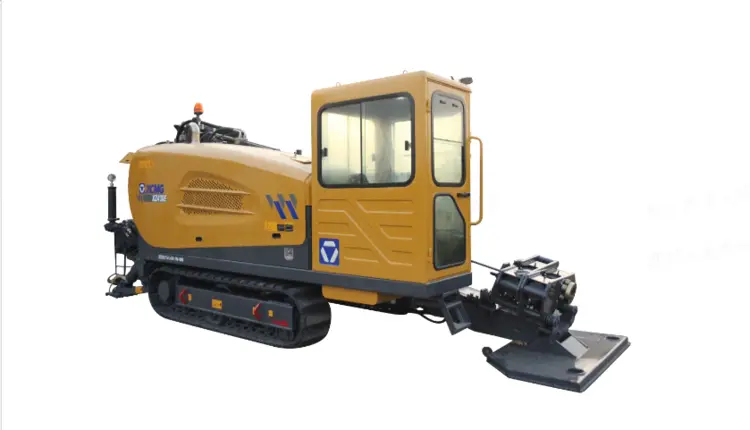

The small tonnage drilling rig is mainly used in the field of municipal pipe network construction.The equipment adopts integrated design, has small size, and is flexible in construction and convenient for transportation.The drilling rig can be equipped with a variety of functional components to meet diverse needs.
Engine: Cummins /
Rated power: 179 kW
Power head Max. thrust-pull force: 430 kN
Power head Max. thrust-pull speed: 48 m/min
Power head Torque: 18500 N·m
Power head Max. rotation speed: 175 r/min
Mud pump Max. flow: 450 L/min
Mud pump Max. pressure: 8 MPa
Crane Lifting weight: / t
Crane Lifting moment: / t•m
Recommended drill pipe: φ83×3 mm×m
Max. entry angle: 20 °
Max. back reaming diamete: φ900 mm
Weight: 12 t
Outline dimensions: 6500×2250×2450 mm
