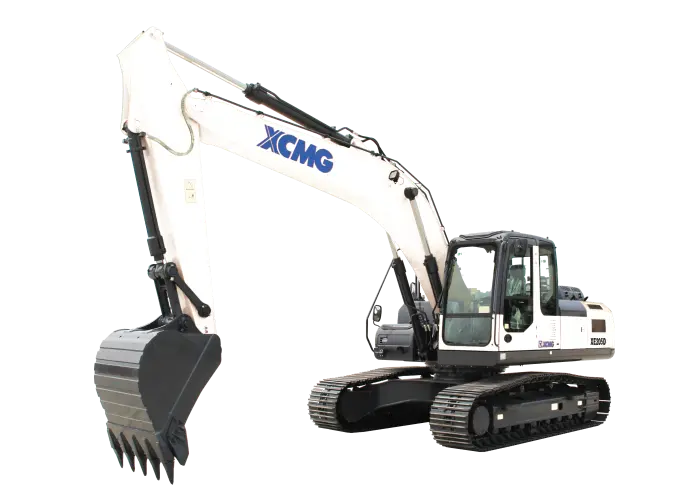

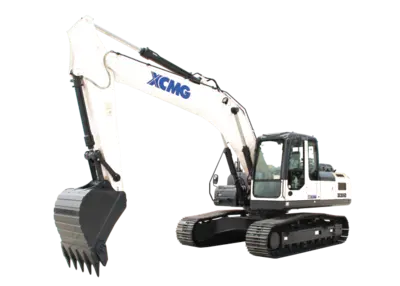

XE205D adopts 135kW low-speed and high-torque engine made by XCMG. With customized power and fuel consumption characteristic curves, it has sufficient power and low fuel consumption. The new type radiator with integral brazing technology and robot welding is equipped with a positive pressure degassing expansion tank to improve the service life of the pump, it can quickly remove the gas in the engine and the waterway, reduce rust, and meet the requirements of 50 °C environment. It can be widely applied to farmland water conservancy, river dredging and municipal construction. It can also realize different operations such as excavating, crushing and dismantling.
Operating weight: 21700 Kg
Rated power: 135 kW/rpm
Engine model: Shangchai SC7H180
Bucket capacity: 1 m³
Emission standard: National Stage Ⅲ
Maximum torque/speed: 850/1300 N.m
Displacement: 6.5 L
Travel speed: 5.4/3.1 km/h
Swing speed: 12.5 r/min
Bucket digging force: 149 kN
Arm digging force: 111 kN
